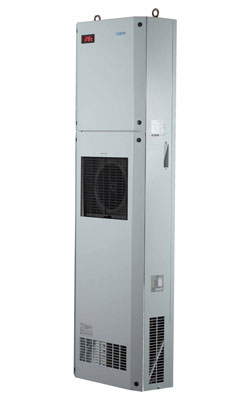

       It is not only sturdy. It is also designed to be a good air-conditioner to complement large control cabinets. With a well
  put together design, it can be used in any environment to gently provide cold air and spread the air across the entire unit.
  It comes with a large condenser coil to help efficiently reduce heat and a compressor can perform quickly response helping
  maintain the temperature within the cabinet. It also has the Hi-prosent control*** to control the system's operations and to
  provide warnings when the unit is not functioning properly. Maintenance will not be a problem for you anymore.

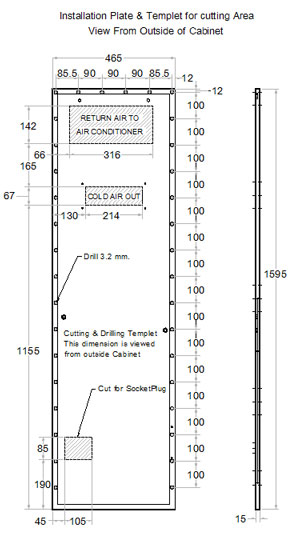

Installation plate It is easy to install with just
some cutting for the installation plate.
The unit can then be attached to the
installation plate. After, the Cooling unit
can be easily removed from the unit without
the hassle of opening the control unit. , etc.


Hi-prosent control system that electronically
controls the operations of the unit to achieve
efficiency and warn when the unit is not
functioning normally.


The condenser coil and evaporator coil are
designed by our experts to quickly disperse
the air with high efficiency.
It has blue clear coated to help reduce the
accumulation of dust and other contaminants.


LED signal to monitor its status
such as : Alarm signal when The
condenser coil had been clogged




The evaporator fan is Blower type that can
gently send cold air over long distances
without causing issues with equipment in the
unit.


It has a high-visibility screen that can be seen
from various angles that showstemperatures
in 7 Segments.


The condenser fans are of Centrifugal type,
waste the heat from condenser effectively.


The unit can be operated for a continuous
24 hours without breaks.



The fan housing used in pushing out the
hot air helps direct the heat that is generated
from the operation of the air conditioner.
This allows for the quickest and most efficient
dispersion of heat.


It has handles on the unit to reduce the
burden in moving the air-conditioner.
The handles can also be used by lifting cranes.



The rotary compressor is durable.
The compressor uses R 134 a CFC fluid which
does not harm the environment.


Cooling Air Flow

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


Hot Air Flow

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

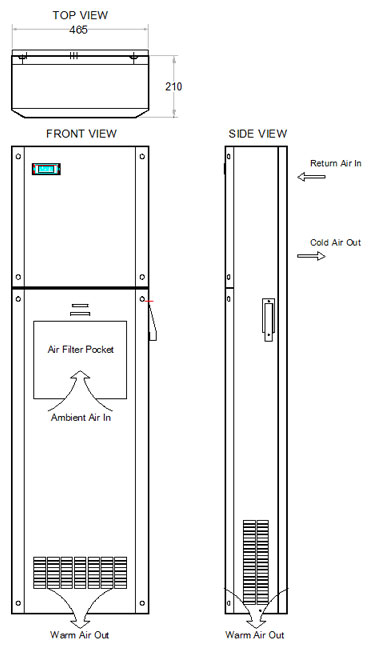

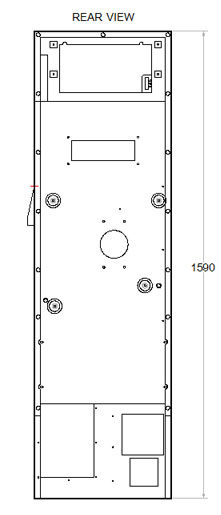

Dimension (mm.)

Characteristics
(under normal operating condition at ambient temp. +35°c)


Model
Capacity (W)
Installation type
Input
single-phase (V.)
frequency (Hz.)
current (A.)
Compressor
hermetic type
torque start type
refrigerant type
lock rotor (A.)
System operate
direct expand
Quick balance
with solinoi valve for easily restart
Hi-prosent control
thermostat
condensor thermal detector
anti-freeze detector
overflow condensate drain protection
Protection
over drain protection system
secondary drainpan
Display
thermometer (red 7 segment 19 mm.)
system status (2 colour LED)
Electrical equipment
safety device
Evaporator coil
face area x rows
type fan (r.p.m.)
number of fan x cfm. (0.18 inH2O)
Condenser coil
face area x rows
type fan (r.p.m.)
number of fan x cfm. (0.2 inH2O)
Physical data
approx.weight (kgs.)
dimension (mm.)
condensate drain
internal casing
Airfilter
width x lenth (mm.)





Gallery >> 1 ... ... ....

  VIDEO

  - Installation

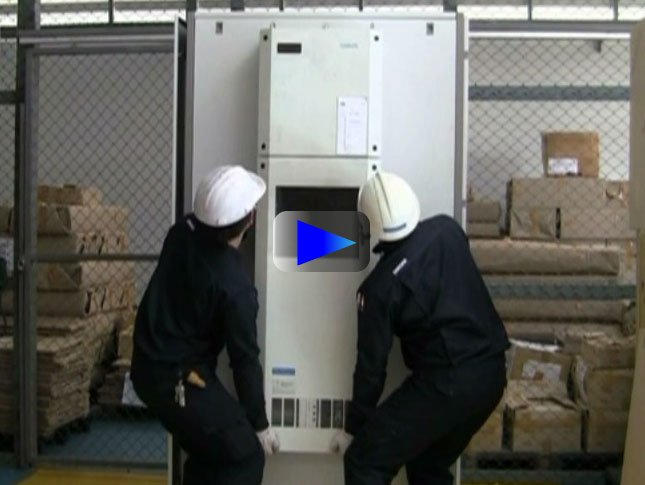

LINEAR 70ACU/003 Enclosure Cooling Unit installation video guide
