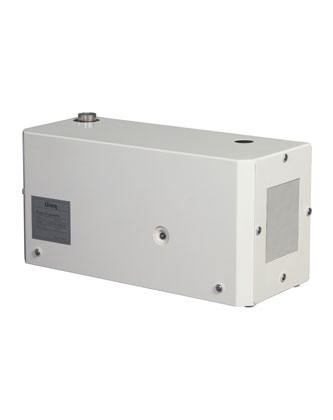

       The water evaporator for the Enclosure Cooling Unit** can evaporate water …500 ml./hr.
and uses less energy. The water evaporation system by ULTRA SONIC without using a heater for evaporation.
*** Only for Enclosure Cooling Unit "LINEAR" Model: 14ACU/005 and 20ACU/003***


















Dimension ( mm.)


Characteristics (under normal operating condition at ambient temp. +35°c)





Model E050-V2
Drain evaporation capacity 500 ml/h
Allowable ambient temperature(°c)/humidity(%) 25-40/20-85
Evaporation type ultrasonic vibration element 5
Installation type panel
Input single-phase (V.) 220V+20% / -15%
frequency (Hz.) 50/60
current (A.) 0.52
power consumption (W.) 115
power cord (M.) 2
Electrical equip. safety device 2A fuse
Display operating green led
Physical data approx.weight (kgs.) 9.7
overall dimension (mm) W:376  D:153  H:190
drain inlet OD (mm.) 15 (5/8")
vapor outlet OD (mm.) 25.4 (1")
overdrain pipe outlet OD (mm.) 9 (3/8")
Filter width x length (mm.) 97 x 110
Installation plate dimensions  (mm) W:394  D:154  H:100




Gallery >> 1 ... ... ....

  VIDEO

Water Evaporator

Licoq E050-V2 Water Evaporator
Download

  - Brochure E050-V2 (.pdf)
