Specification


MODEL

40ACU/004-2
Capacity (W) 1500
Installation type top
Input
Single-phase (V.) 200V+20%/-15%
Frequency (Hz.) 50/60
Current (A.) 3.60
Compressor
Hermetic type reciprocate
Torque start type high
Refrigerant type 134a
Lock rotor (A.) 23.90
System operate
Direct expand -
Quick balance
With solinoi valve for easily restart
Hi-prosent control
Thermostat
Condensor thermal detector
Anti-freeze detector
Overflow condensate drain protection
Protection
over drain protection system
  Secondary drain pan
Display
Thermometer
(red 7 segment 19mm.)
-
System status
(2 color LED)

Electrical equipment
Safety device 7A slow-blow fuse
Evaporator coil
Face area x rows 76.125 sq.inch x 2
Type fan (r.p.m.) Servo fan (2850)
Number of fan x cfm.
(0.18 in H2O)
1 x 158
Condensor coil
Face area x rows 196 sq.inch x 3
Type fan (r.p.m.) Servo fan (2850)
Number of fan x cfm.
(0.2 in H2O)
4 x 158
Physical data
Approx. weight (kgs.) 42.60

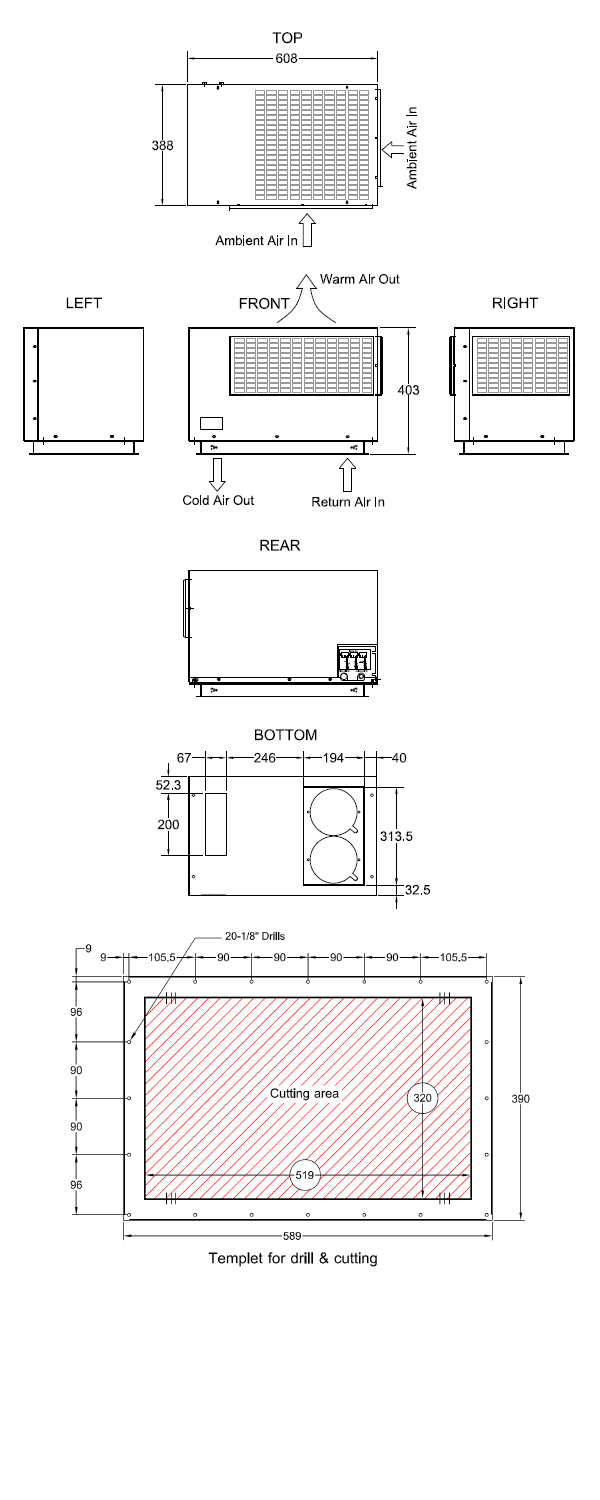

Dimenstion (mm.) W:608 D:388 H:403
Condensate drain OD. 1/2 inch
Internal casing electro-galvanize
Airfilter
Width x Length (mm.) 488 x 185 (#1)
  340 x 185 (#2)
Compare product
*Under normal operating condition at ambient temp.+35°C
