Specification


MODEL

70ACU/003
Capacity (W) 2400
Installation type panel
Input
Single-phase (V.) 200V+20%/-15%
Frequency (Hz.) 50/60
Current (A.) 6.00
Compressor
Hermetic type rotary
Torque start type low
Refrigerant type r407c
Lock rotor (A.) n/a
System operate
Direct expand
Quick balance
With solinoi valve for easily restart -
Hi-prosent control
Thermostat
Condensor thermal detector
Anti-freeze detector
Overflow condensate drain protection -
Protection
over drain protection system
Secondary drain pan -
Display
Thermometer
(red 7 segment 19mm.)

System status
(2 color LED)

Electrical equipment
Safety device 7A slow-blow fuse
Evaporator coil
Face area x rows 104 sq.inch x 2
Type fan (r.p.m.) Blower fan (1440)
Number of fan x cfm.
(0.18 in H2O)
1 x 360
Condensor coil
Face area x rows 171.88 sq.inch x 6
Type fan (r.p.m.) Centrifugal fan (2310)
Number of fan x cfm.
(0.2 in H2O)
1 x 710
Physical data
Approx. weight (kgs.) 71.90

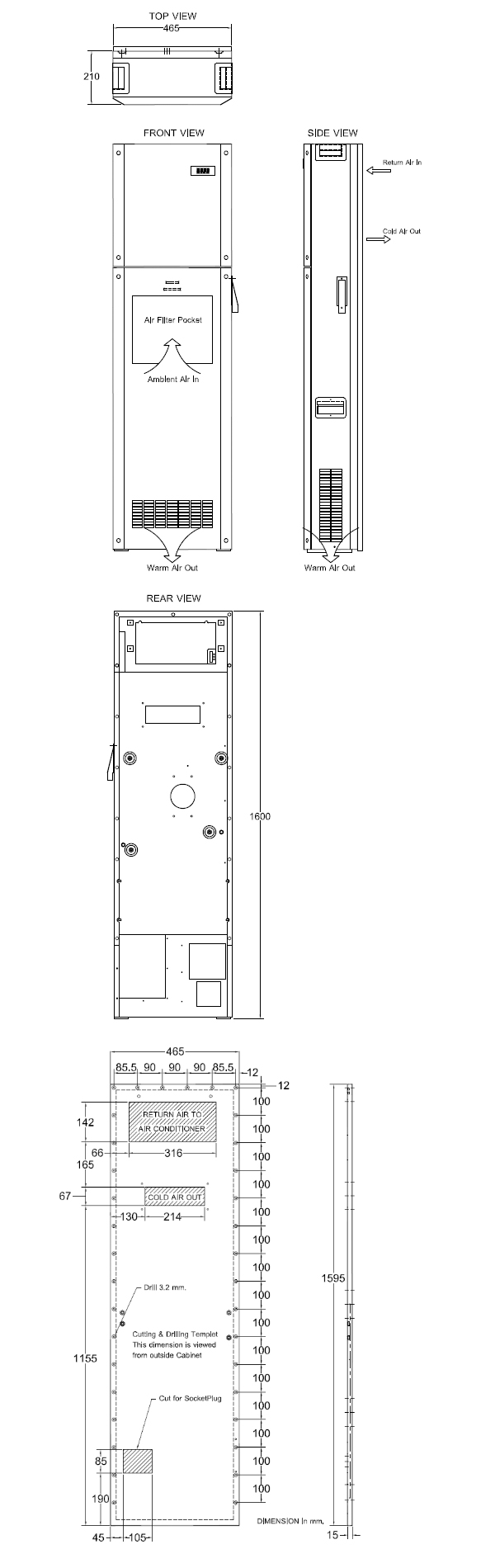

Dimenstion (mm.) W:465 D:210 H:1590
Condensate drain OD. 1/2 inch
Internal casing electro-galvanize
Airfilter
Width x Length (mm.) 305 x 285
Compare product
*Under normal operating condition at ambient temp.+35°C
