Specification


MODEL

14ACU/005
Capacity (W) 300
Installation type panel
Input
Single-phase (V.) 200V+20%/-15%
Frequency (Hz.) 50/60
Current (A.) 1.83
Compressor
Hermetic type reciprocate
Torque start type low
Refrigerant type 134a
Lock rotor (A.) 8.30
System operate
Direct expand
Quick balance
With solinoi valve for easily restart -
Hi-prosent control
Thermostat
Condensor thermal detector
Anti-freeze detector
Overflow condensate drain protection -
Protection
over drain protection system
Secondary drain pan -
Display
Thermometer
(red 7 segment 19mm.)

System status
(2 color LED)

Electrical equipment
Safety device 7A slow-blow fuse
Evaporator coil
Face area x rows 25.5 sq.inch x 2
Type fan (r.p.m.) servo fan (2700)
Number of fan x cfm.
(0.18 in H2O)
1 x 50
Condensor coil
  Face area x rows 33.75 sq.inch x 3
Type fan (r.p.m.) servo fan (2850)
Number of fan x cfm.
(0.2 in H2O)
1 x 158
Physical data
Approx. weight (kgs.) 26.00

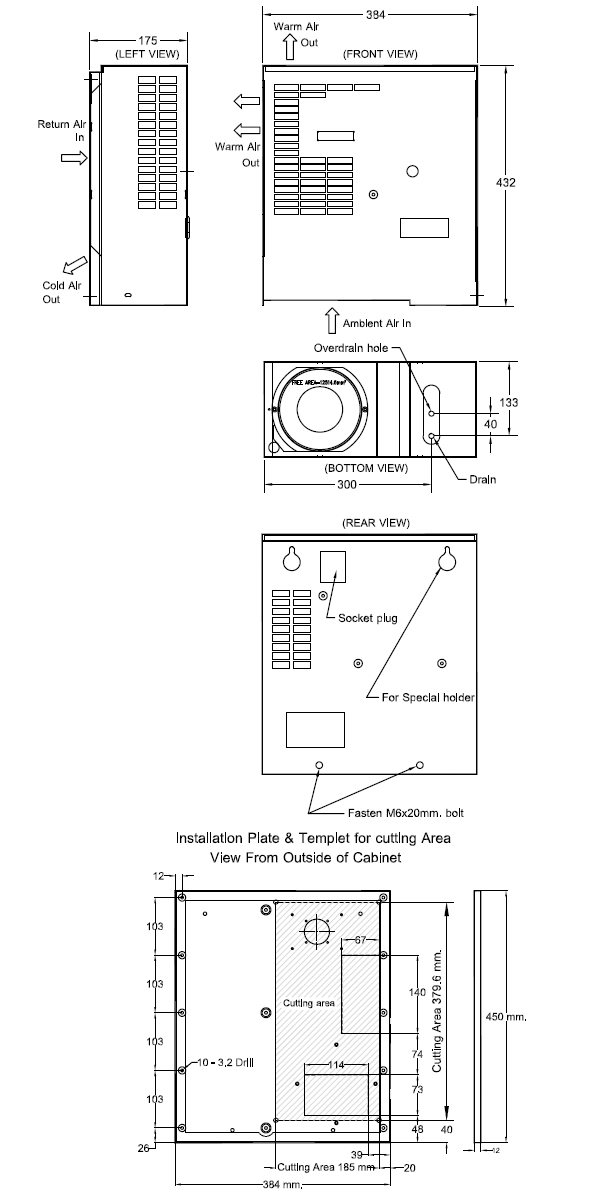

Dimenstion (mm.) W:384 D:175 H:432
Condensate drain OD. 3/8 inch
Internal casing electro-galvanize
Airfilter
Width x Length (mm.) 168 x 250
Compare product
*Under normal operating condition at ambient temp.+35°C





Manual


  -Brochure 14ACU/005


  -English manual
